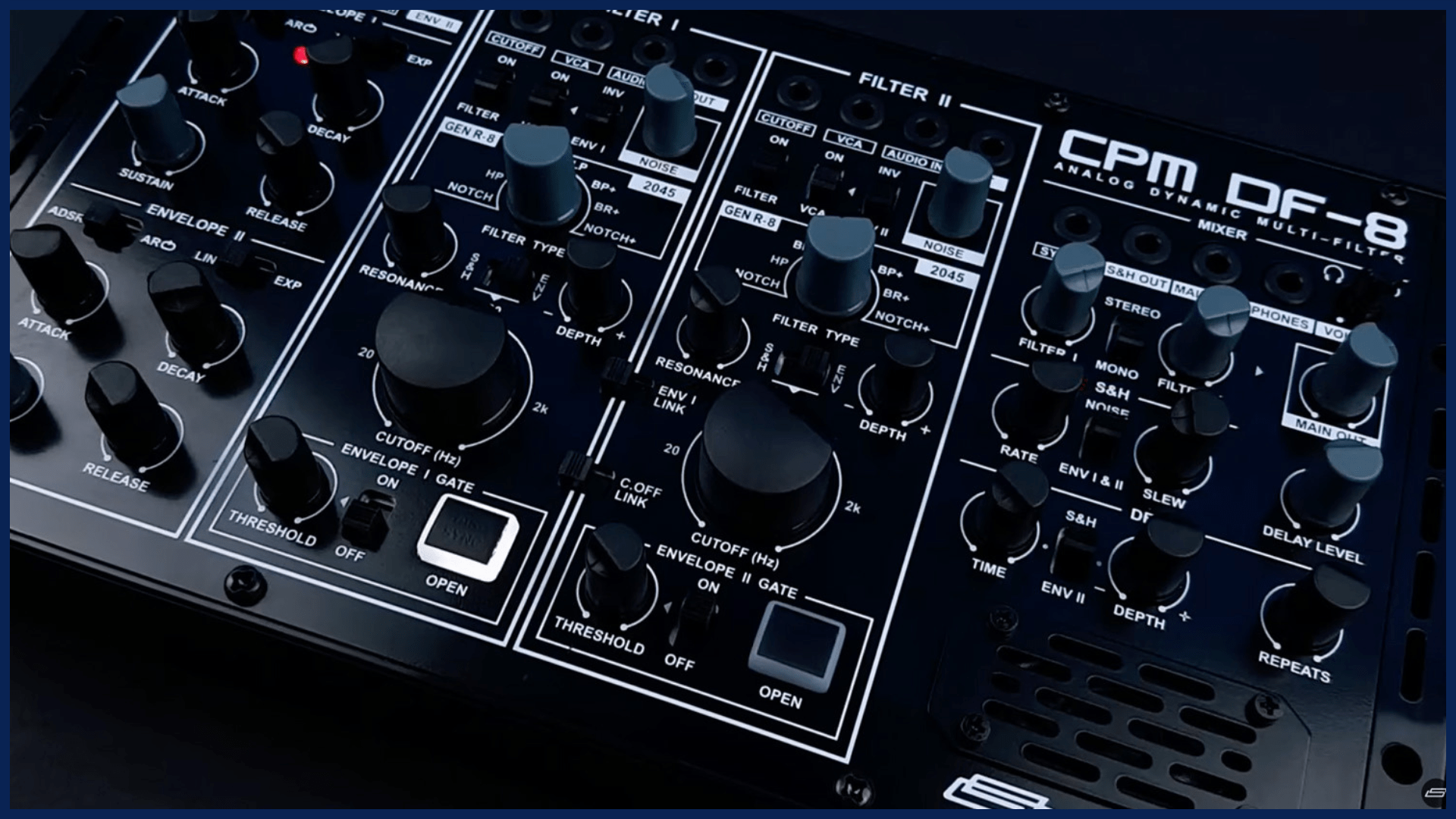

Introducing the Stylophone CPM DF-8, a powerful addition to Stylophone’s Compact Portable Modular (CPM) range.
This cutting-edge filter unit combines the precision of a smooth analog recreation of the classic 2045 Lowpass filter with the bold, dynamic character of Stylophone’s proprietary GEN R-8 filter.
Dubbed “Beauty and the Beast,” the DF-8 offers unparalleled flexibility. The 2045 filter delivers a silky 24 dB/octave Lowpass mode, while the GEN R-8 snarls and howls in all four modes—Lowpass, Bandpass, Highpass and Notch. Together, these filters unlock three additional combination types: Bandpass+, Band Reject+, and a wide Notch+ mode, providing an expansive palette of unique filter sounds.
Both filter channels have all eight filter types and are controlled by two full ADSR envelopes with multiple trigger modes to cater for every need. They can be triggered by a gate signal, by an audio signal threshold, by a manual trigger button and they can even autorepeat in a loop mode acting as LFOs.
The DF-8 is so much more than a dual filter box—it’s a complete sound design tool. Equipped with two white noise sources, a Sample & Hold modulation source with adjustable slew, and a crunchy PT2399 delay with modulation, it serves as a sound source capable of everything from subtle atmospheres to all out sonic chaos.
Like all CPM units, the DF-8 is designed for portability and flexibility. It features:
• Multiple power options, including AA batteries, external PSU, or Eurorack power bus
• A built-in 2W speaker for instant listening without amplification plus stereo outputs
• Stylophone’s unique enclosure design with side ribs allow multiple CPM units to be locked together, for stability like a large modular, and for easy system expansion
Pair the CPM DF-8 with the CPM DS-2 to create the ultimate compact portable analog modular system for studio or stage use.
John Simpson, Managing Director of Dubreq Ltd, said:
“The DF-8 is designed to be more than just a filter—it’s a creative tool with depth and flexibility. The GEN R-8 and 2045 filters are at the heart of this, offering everything from smooth, controlled tones to wild, expressive textures. With its combination filter modes, extensive modulation features, and ability to operate independently or as part of a larger system, the DF-8 is built to inspire creativity and adapt to any musician’s setup.”
The Stylophone CPM DF-8 Dual Analog Filter Unit will be showcased at NAMM Booth 10407 and will be available later in 2025.
